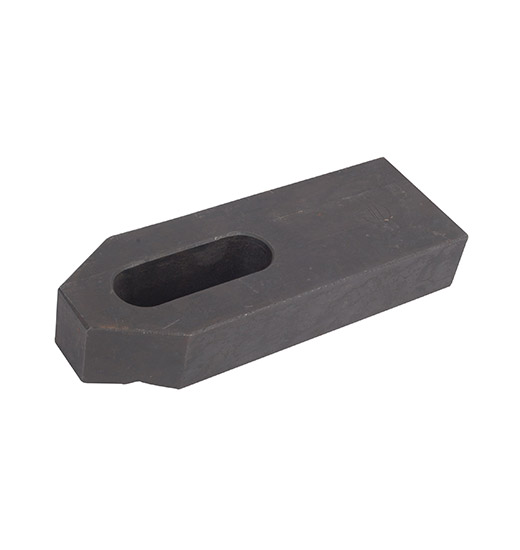

Slotted Clamp
APEX CODE No. 936
Slotted Clamp
IS:6082-1985
Features
- Material: Carbon Steel, hardened & tempered to 24-32 HRC hardness, chemically blackened.
- Application: Suitable as clamping element in work
Specifications
| Code | 936-1 | 936-2 | 936-3 | 936-4 | 936-5 | 936-6 | 936-7 | 936-8 | 936-9 | 936-10 |
|---|---|---|---|---|---|---|---|---|---|---|
| D x L | 11x75 | 11x95 | 14x100 | 14x115 | 18x120 | 18x135 | 22x140 | 22x150 | 26x200 | 26x240 |
| A | 16 | 16 | 20 | 20 | 25 | 25 | 30 | 30 | 35 | 35 |
| B | 30 | 30 | 40 | 40 | 50 | 50 | 60 | 60 | 70 | 70 |
| Suitable for Screw Size | M10 | M10 | M12 | M12 | M16 | M16 | M20 | M20 | M24 | M24 |
