- Apex Industries
- AN ISO 9001-2015 COMPANY

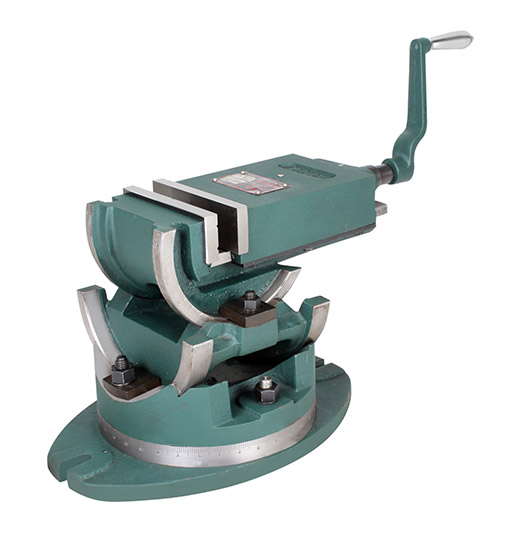

3 Way Universal Tilt & Swivel Angle Vice
APEX CODE No. 730
3 Way Universal Tilt & Swivel Angle Vice
(Size : 4", 6")
Features
- APEX 3 Way Universal Tilt & Swivel Angle Vice can tilt +45° and Circle 360°, and has all the built strength and rigidity associated with APEX Vices.
Finish
- Amazon Green
Specifications
| Size in Inches | 4 | 6 |
|---|---|---|
| Width of Jaws (in mm) | 100 | 150 |
| Depth of Jaws (in mm) | 40 | 55 |
| Opening of Jaws (in mm) | 100 | 150 |
| Length Overall (in mm) | 390 | 545 |
| Height Overall (in mm) | 195 | 310 |
| Width Overall (in mm) | 230 | 275 |
| Tenon Slot Size (in mm) | 20 | 20 |
| Weight (app. in Kgs.) | 30 | 65 |
