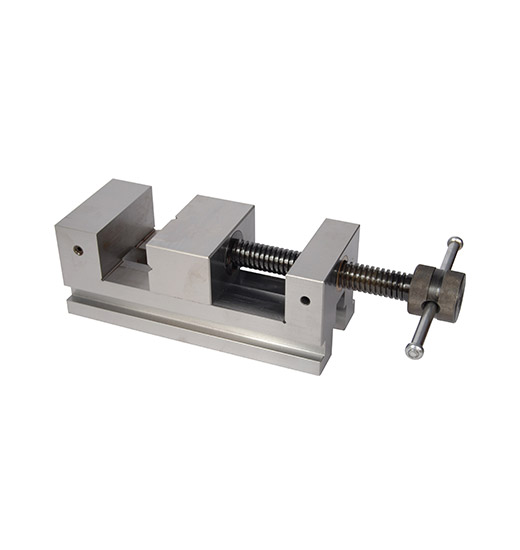

All Steel Precision Grinding Vice

Features

• All Vice surfaces are precision ground.
• The movable jaw is slightly narrow than the base enabling the vices to be used on either sides in addition to the base.
• Clamping and releasing is through a threaded spindle with precision cut square threads for smooth operation.
• Vice spindle moves in a specially designed gun metal bush which reduces wear thus enhancing the life of the vice.
• Fix Jaw side threaded for clamp support 5/16"BSW.
• These are available in two models.

Application

• Used in tool manufacturing, on grinding, milling, and jig boring machines for measurement an inspection work and in anufacturing processes that require highest standards of clamping acuracy.

Construction 771

• Manufactured from Selected Carbon Steel, these soild one piece vices are fully hardened (45-50 HRC) and tempered to ensure stability and durability.

Accuracy

• Parallelism : 0.015 max (15 Microns)
• Perpendicularity : 0.015 max (15 Microns)

Construction 771T

• Manufactured from Tool Steel Body, these soild one piece vices are fully hardened (52-60 HRC) and tempered to ensure stability and durability.

Accuracy

• Parallelism : within 8 microns
