Indexing Device

Features

• Optional unit to enable the user to convert quickly Rotary Milling to using Indexing Plates.

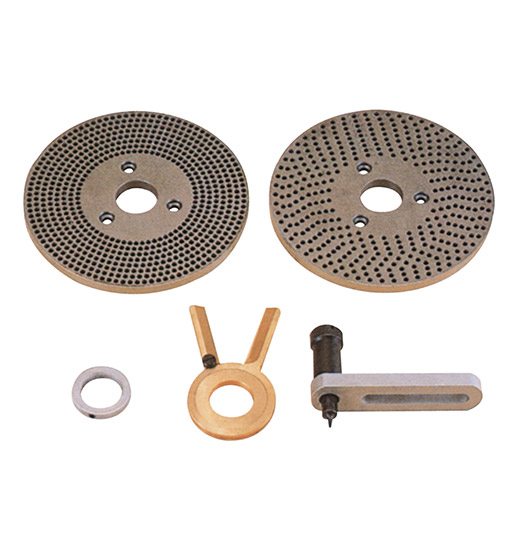

• The dividing plate set consist of 2 indexing plates, a sector & a handle with plunger.
• The dividing plate set consist of 2 indexing plates, a sector & a handle with plunger.
• Using this dividing plate set the indexing of 2 to 60 divisions can be attained quickly and accurately.

Application

• APEX ROTARY TABLES have a sturdy design to suit many achining operations on Milling Machines including circular cutting, setting angles and indexing. They are available in a range of sizes to suit various machines and machining applications.

Construction

• The table and base is manufactured from close grain shock resisting Cast Iron dully stress relieved
• Worm & center table bush made of selected steel.

Inspection

• Direct reading to 2 minute for size 6",8" and 10" on hand
  wheel scale.
• Direct reading to 1 minute for size 12",15",18" and 20" on
  hand wheel scale.
• ACCURACY:- Maximum error 4 minutes of circular
  division using hand wheels.
• Table flat to within 0.01 mm / 100 mm.
• Working surface rotates in its own plane to within 0.030
  mm.
• Horizontal and Vertical supporting surface square with
  0.01mm/100 mm.
• Centre bush bore is true to table axis within 0.03 mm.
• Maximum parallelism error through 360° rotation of table
  is .025 mm .
• Both horizontal slots in & Vertical mounting on machine table.

Finish

• Hammer tone mid grey
