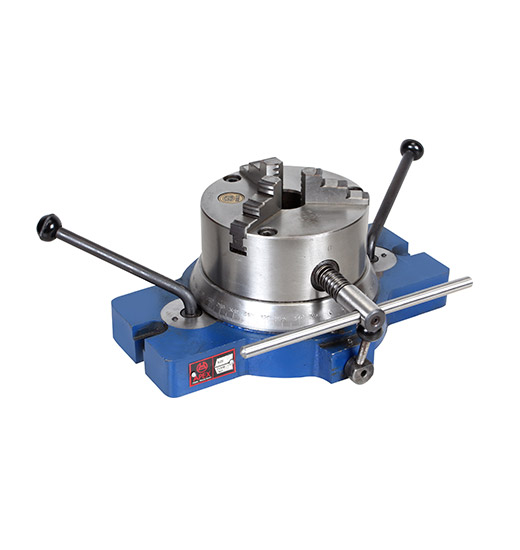

Indexing Milling Fixture
APEX CODE No. 767
Indexing Milling Fixture
With 3 Jaws Chuck Mounting
(Size : 4", 6")
Features
- This is similar to Code766 but provided with 3 jaws self centring true chuck with reverse jaws for holding any diameter upto chuck capacity.
- Indexing Can Be carried out Directly by 360 graduated collar as well as by index plate and finger.
Finish
- Blue Powder
Specifications
| sizes | 767 4" |
767 6" |
|---|---|---|
| Overall Length ( in mm ) | 320 | 320 |
| Overall Width ( in mm ) | 230 | 230 |
| Graduation | 360 | 360 |
| Distance Between Slots | 295 | 295 |
| Chuck Size ( in mm ) |
100 |
160 |
| Chuck Hole ( in mm ) | 22 | 40 |
| Weight (app. in Kgs) |
18 |
23 |
