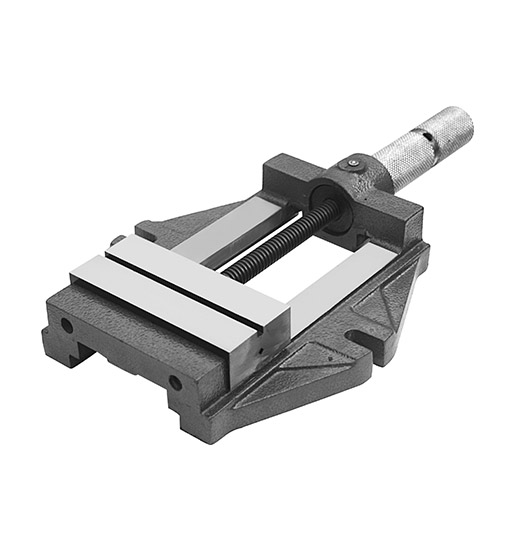

Unigrip Machine Vice
APEX CODE No. 710, SG710
Unigrip Machine Vice
(Size : 3.1/4", 4", 6")
Features
- Small compact and indispensable Vices with steel jaws. On the face of which are grooved horizontal and vertical notches for holding, round, square, thin & irregular work for drilling & light milling.
- Vices are equipped with a convenient unigrip mechanism. Spindle moves inside the hollow hand grip allowing the vice to be used at a location away from table edge. This feature increase the scope of application of the range of vices.
Finish
- Hammer tone mid grey.
- Hammer tone metallic blue.
Code SG710 : SG Ductile Iron Body
Specifications
| Size in inches | 3.1/4" | 4 | 6 |
|---|---|---|---|
| Width of Jaws (in mm ) | 80 | 100 | 150 |
| Depth of Jaws (in mm) | 25 | 25 | 40 |
| Opening of Jaws (in mm) (Lower Portion) |
80 | 115 | 140 |
| Opening of Jaws (in mm) (Upper Portion) |
85 | 120 | 160 |
| Length overall (in mm) | 260 | 325 | 415 |
| Height overall (in mm) | 50 | 55 | 60 |
| Width overall (in mm) | 145 | 180 | 240 |
| Weight (app. in Kgs.) | 3 | 5 | 10 |
