Cross Rib Bench Vice (Swivel Base)
APEX Code SG734S

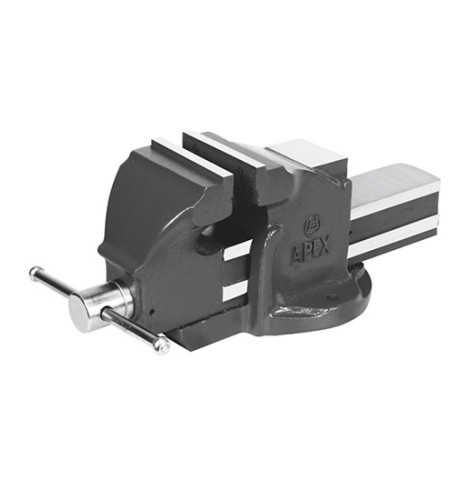

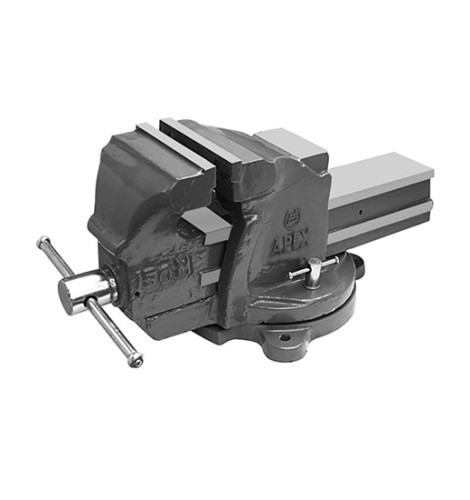

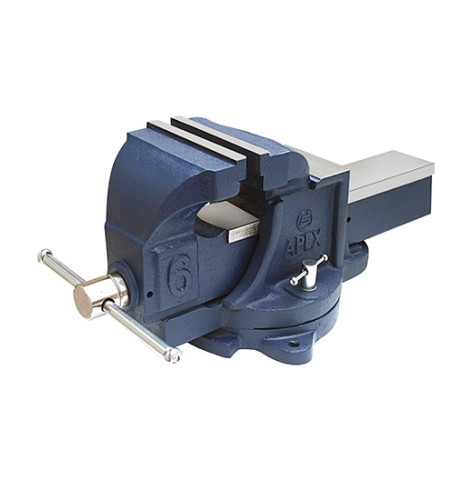

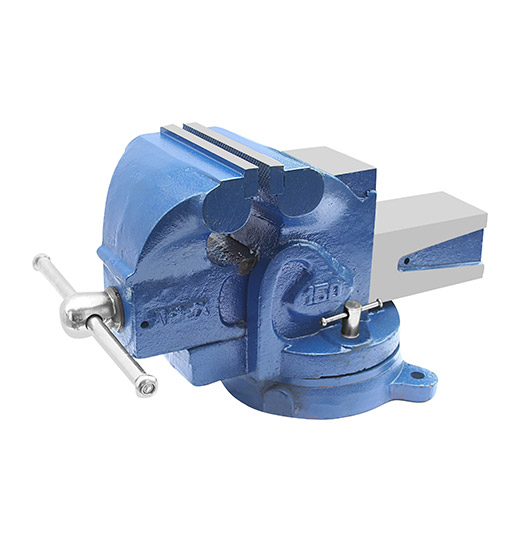

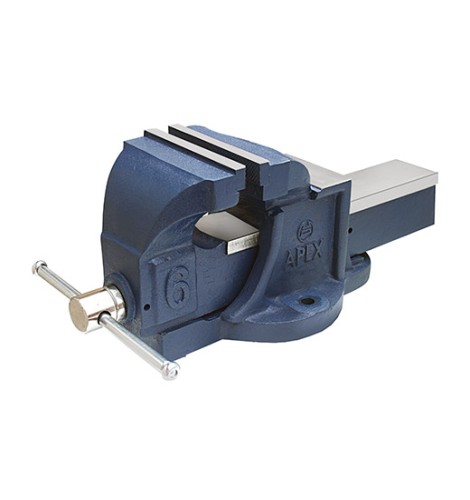

Cross Rib Bench Vice
Swivel Base
( Size : 3", 4", 5", 6", 8" )
Features
- Undoubtedly the most popular of the lot, these are a common sight in almost all workshop and garages These are available with a fixed base for regular usage or a swivel base that allows rotation through 360° with firm locking at any position. The swivel base allows the vice to be adjusted to accept work of varying length.
- The Swivel base can be easily removed and vice converted back to a regular fixed base vice.
- Warning: These vices are designed for gripping / holding jobs and should not be used where heavy hammering is anticipated.
- SG Ductile Iron Body
Finish
- Hammer tone metallic blue.
Specifications
| Size in inches | 3 | 4 | 5 | 6 | 8 |
|---|---|---|---|---|---|
| Width of Jaws (in mm) | 75 | 100 | 125 | 150 | 200 |
| Opening of Jaws (in mm) | 85 | 100 | 130 | 155 | 200 |
| Depth of Jaws (in mm) | 50 | 60 | 70 | 85 | 100 |
| Weight (app.in Kgs) | 6.5 | 10.3 | 15.5 | 25 | 39 |
