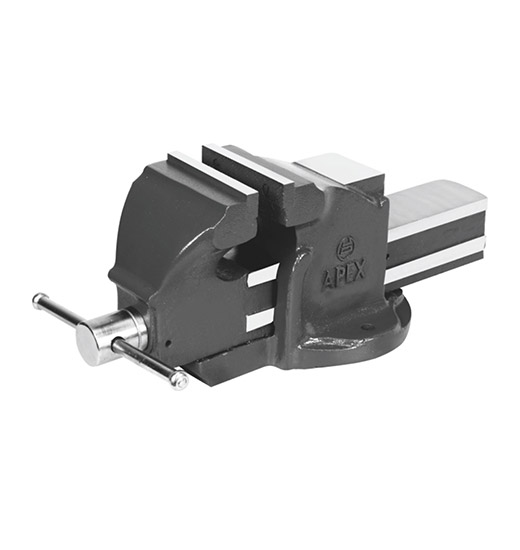

Heavy Duty Bench Vice (Fixed Base)
APEX Code 740
Heavy Duty Bench Vice
Fixed Base Deluxe ( Double Rib )
( Size : 3", 3.1/2", 4", 4.1/2", 5", 6", 8" )
Features
- These vices have all the features of the Standard Mechanic's Vices Code 741 except its heavy duty & the slide is provided with double ribs to ensure long life accuracy.
Construction
- Nut: S.G. iron. Acme fine-pitched thread screw.
Finish
- Enameled smoke blue
Specifications
| No. | 1 | 2 | 3 | 4 | 5 | 6 | 8 |
|---|---|---|---|---|---|---|---|
| Size in inches | 3 | 3.1/2 | 4 | 4.1/2 | 5 | 6 | 8 |
| Width of Jaws (in mm) | 80 | 90 | 100 | 115 | 125 | 150 | 200 |
| Opening of Jaws (in mm) | 90 | 100 | 120 | 140 | 170 | 200 | 235 |
| Depth of Jaws (in mm) | 55 | 60 | 70 | 80 | 85 | 90 | 110 |
| Weight (app.in Kgs) | 7 | 11 | 16 | 20 | 23 | 30 | 44 |
