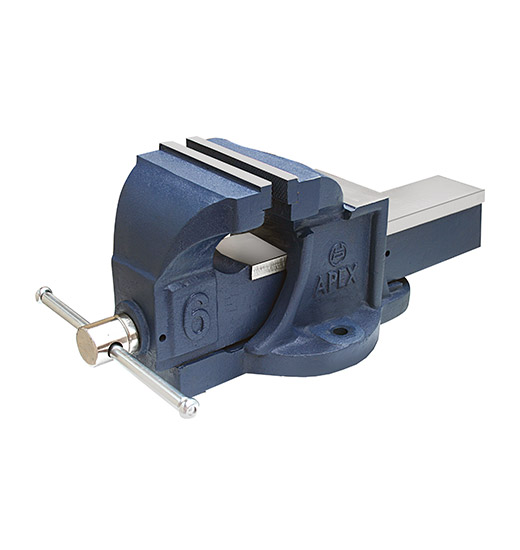

Mechanic's Bench Vice (Fixed Base)
APEX Code 741
Mechanic's Bench Vice
Fixed Base
(Size : 2.1/4", 2.1/2", 3", 3.1/2", 4", 4.1/2", 5", 6", 8", 10", 12" )
FEATURES
- Industry's favorite Mechanic's Bench Vices for 40 years had been made better. It's more of a "workhorse" than ever and here are solid reasons why
- Massive Anvil: More anvil area than before and the largest of any Mechanic's Vice in the market.
- Precision machine component & bearing surface for smooth operation and reliability.
CONSTRUCTION
- Stressed Parts "Beefed - up"! Areas of greatest stress have been strengthened with shock resisting C.I. casting for long dependable service.
- The large Diameter main screw fine pitched, square thread made of high grade steel.
- Long Forged Steel: Detachable and replaceable nut.
- Replaceable hardened steel serrated jaw plates guarantee a fast non-slip grip.
FINISH
- Enameled oxford blue
Specifications
| No. | 00 | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size in inches | 2.1/4 | 2.1/2 | 3 | 3.1/2 | 4 | 4.1/2 | 5 | 6 | 8 | 10 | 12 |
| Width of Jaws (in mm) | 60 | 65 | 80 | 90 | 100 | 115 | 125 | 150 | 200 | 250 | 300 |
| Opening of Jaws (in mm) | 60 | 65 | 90 | 100 | 120 | 140 | 170 | 200 | 235 | 300 | 365 |
| Depth of Jaws (in mm) | 45 | 50 | 55 | 60 | 70 | 80 | 85 | 90 | 110 | 120 | 140 |
| Weight (app.in Kgs) | 3.7 | 4.4 | 6 | 8.5 | 15 | 16 | 20 | 25 | 40 | 70 | 79 |
