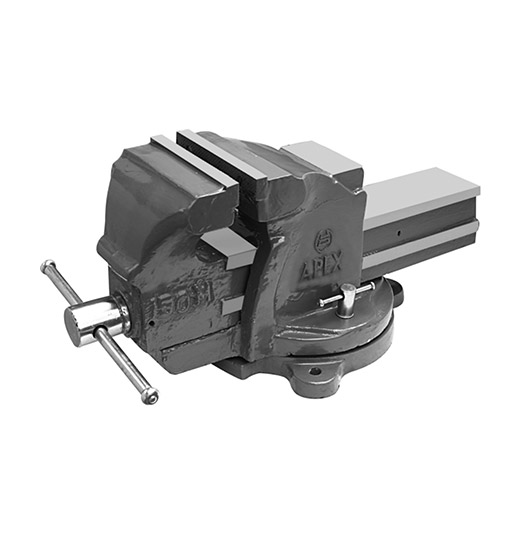

Heavy Duty Bench Vice Deluxe (Double Rib) Swivel Base
APEX Code 740S
Heavy Duty Bench Vice
Deluxe (Double Rib) Swivel Base
( Size : 3", 3.1/2", 4", 4.1/2", 5", 6", 8" )
Features
- The swivel base rotates 360° and can firmly be locked at any point.
Finish
- Enameled smoke blue
Specifications
| No. | 1 | 2 | 3 | 4 | 5 | 6 | 8 |
|---|---|---|---|---|---|---|---|
| Size in inches | 3 | 3.1/2 | 4 | 4.1/2 | 5 | 6 | 8 |
| Width of Jaws (in mm) | 80 | 90 | 100 | 115 | 125 | 150 | 200 |
| Opening of Jaws (in mm) | 90 | 100 | 120 | 140 | 170 | 200 | 235 |
| Depth of Jaws (in mm) | 55 | 60 | 70 | 80 | 85 | 90 | 110 |
| Weight (app.in Kgs) | 10.4 | 13.3 | 20 | 23 | 28 | 36 | 56 |
