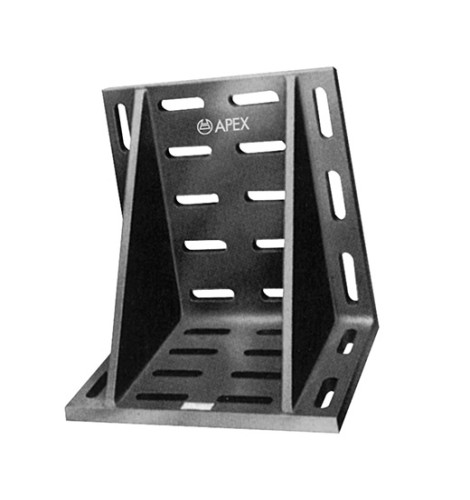

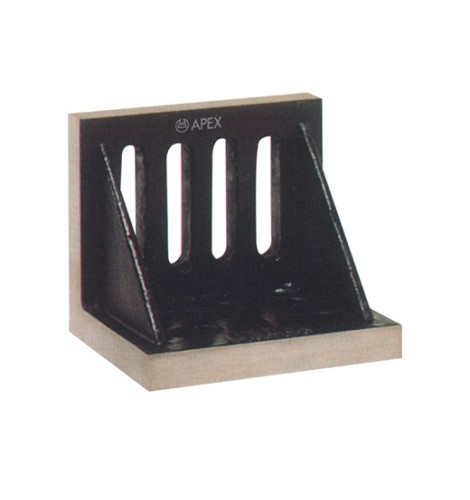

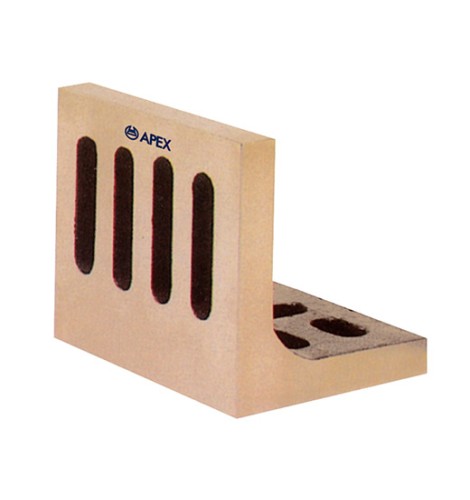

Giant Slotted Angle Plates Machined 756
APEX CODE No. 756

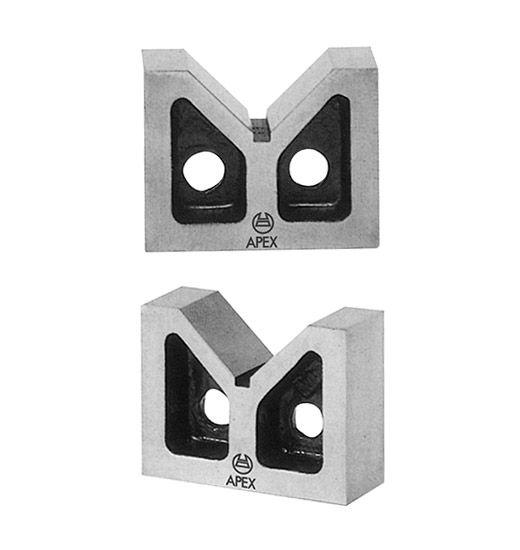

C.I. Vee Blocks
Machined
Features
- Supplied in Matched and numbered pairs, these Vee Blocks provide a useful means of holding cylindrical work for layout, inspection, drilling and machining. Each pair is accurately machined with 90° Vee which is centered in true and square and parallel with the base to within 001" (.03 mm) can be precision ground to .0005" (.01mm)
if so desired.
Accuracy
- Wrincle black
Specifications
| Code 756 | 756-2 | 756-3 | 756-4 | 756-5 | 756-6 | 756-7 | 756-8 | 756-10 | 756-12 |
|---|---|---|---|---|---|---|---|---|---|
| Width in inches 'A' | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 |
| Height in inches 'B' | 1.1/4 | 2.3/8 | 2.5/8 | 3.1/8 | 3.1/2 | 4.1/2 | 5.1/2 | 6.1/2 | 8 |
| Thickness in inches 'C' | 1.7/8 | 2.5/8 | 3.1/4 | 4 | 5 | 6 | 8 | 10 | 12 |
| Weight (app. in Kgs. ) | 0.4 | 1.2 | 2 | 4 | 7 | 13 | 20 | 31 | 58 |
