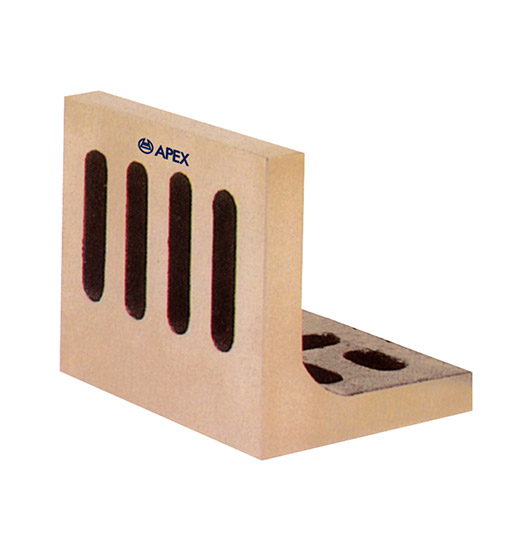

Slotted Angle Plates Open End
APEX CODE No. 754 & 754G
Slotted Angle Plates Open End
754 - Machined, 754G - Precision Ground
Features
- These slotted angle plates have all the features of Code 751 except are provided with convenient clamping slots for mounting and are widely used for machining lay out and inspection.
- Spplied in two types webbed end have side webs & an open end.
- Code 754G : Open End Precision Ground
Finish
- Wrincle Black
Specifications
| Code 754 (Open End) |
754 - 1 | 754 - 2 | 754 - 3 | 754 - 4 | 754 - 5 | 754 - 6 | 754 - 7 | 754 - 8 | 754 - 9 |
|---|---|---|---|---|---|---|---|---|---|
| Length In Inches 'A' | 3 | 3.1/2 | 4.1/2 | 6 | 7 | 8 | 9 | 10 | 12 |
| Length In Inches 'B' | 2.1/2 | 3 | 3.1/2 | 5 | 5 | 6 | 7 | 8 | 9 |
| Length In Inches 'C' | 2 | 2.1/2 | 3 | 4.1/2 | 4.1/2 | 5 | 6 | 6 | 8 |
| Weight ( app. in Kgs. ) | ... | ... | 1.3 | 3 | 5 | 5 | 8 | 10 | 20 |
