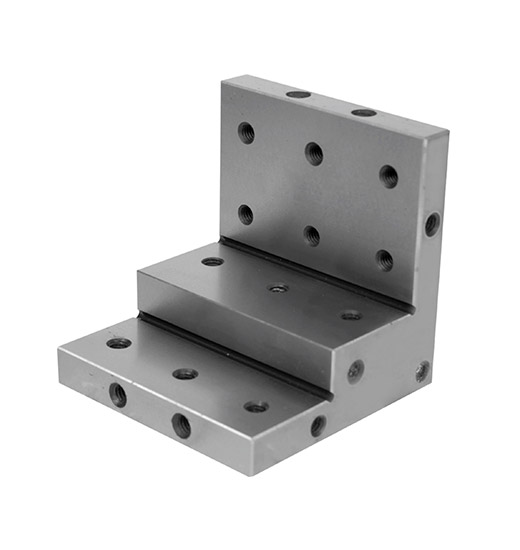

APEX CODE No. 777
Stepped Angle Plates
Features
- A convenient step of 32 mm down from the top and a 12 mm seat alllows for use with smaller work pieces. Presence of 24 tapped hole allows for fastenings to fixtures & clamping work to the angle plate.
Application
- An indispensable device for accurate work in tool room and in small production, jobs for checking flatness squareness and parallelism.
Construction
- Manufactured from a single piece of hardened tools steel.
- Precision Ground, square and parallel.
Accuracy
- Flatness working faces (5 Microns)
- Squareness exterior faces over height (10 Microns)
- Parallelism opposite faces & edges over their length ( 5 microns)
- Squareness and faces w.r.t. Exterior faces as measured over length (10 microns)
