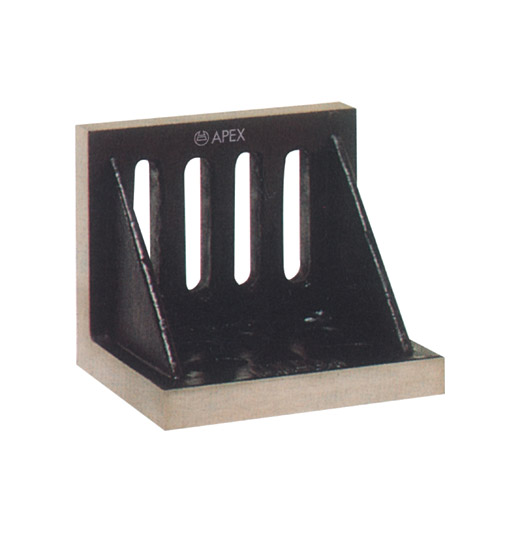

Slotted Angle Plates Webbed End
APEX CODE No. 753 & 753G
Slotted Angle Plates Webbed End
753 - Machined, 753G - Precision Ground
Features
- These slotted angle plates have all the features of Code 751 except are provided with convenient clamping slots for mounting and are widely used for machining lay out and inspection.
- Spplied in two types webbed end have side webs & an open end.
- Code 753G : Webbed End Precision Ground
Finish
- Wrincle Black
Specifications
| Code 753 (Open End) |
753 - 1 | 753 - 2 | 753 - 3 | 753 - 4 | 753 - 5 | 753 - 6 | 753 - 7 | 753 - 8 | 753 - 9 |
|---|---|---|---|---|---|---|---|---|---|
| Length In Inches 'A' | 3 | 3.1/2 | 4.1/2 | 6 | 7 | 8 | 9 | 10 | 12 |
| Length In Inches 'B' | 2.1/2 | 3 | 3.1/2 | 5 | 5 | 6 | 7 | 8 | 9 |
| Length In Inches 'C' | 2 | 2.1/2 | 3 | 4.1/2 | 4.1/2 | 5 | 6 | 6 | 8 |
| Weight ( app. in Kgs. ) | 0.6 | 0.8 | 1.4 | 4 | 5 | 6 | 8 | 11 | 20 |
